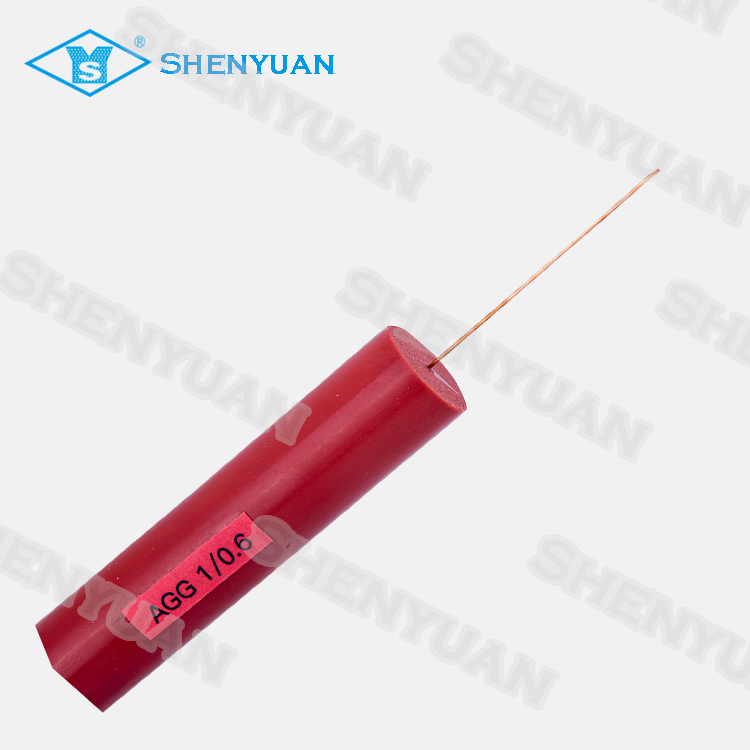

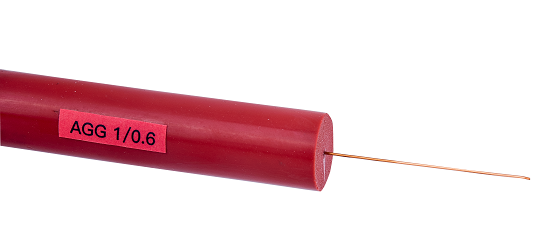

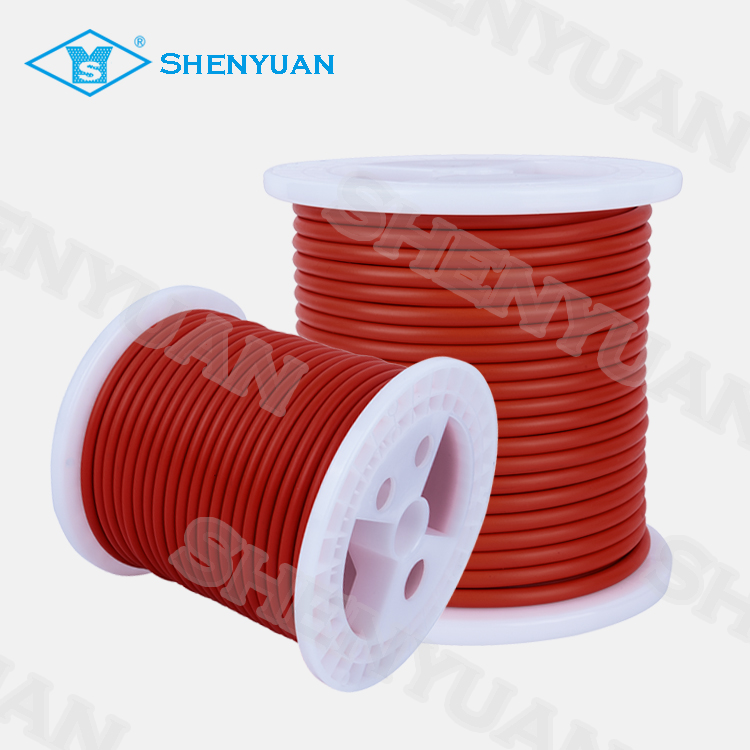

“AGG” High voltage silicone rubber wire 1KV-100KV
Our model: “AGG” High voltage silicone rubber wire 1KV-100KV
Our “AGG” series wires take flexible silicone rubber as the insulation material ,which is designed for the clients who make use of the wires to the working area where the high voltage is need, it is widely used in High-voltage cabinet,power systems and the transformers......
We devide our “AGG” High voltage silicone rubber wire into two categories: “AGG” -AC and “AGG” -DC.
For “AGG” -AC ,we can provide you with two voltages: 10KV and 35 KV
For “AGG” -DC, the voltage is ranging: 5KV to Max 100KV
The Production standards comply with ISO 6722; QC/T 1037; LV 216 etc.
LV 216 specifies cable design, dimensions, etc
Customer requirements for the basic properties of silicone rubber: Tensile strength > 8 MPa Elongation > 300% Hardness 55-70 ShA
Class E(180 ° C hybrid) and Class F(200 ° C) require silicone rubber
Class E
Tear Strength ISO 34-1 B > 15 N/mm
Long-term aging of cable 180℃*3000 hours
Class F
Long-term aging of cable 200℃*3000 hours
Tear Strength ISO 34-1 B > 10 N/mm
Inspection process
Technical data of AGG series
|
Code |
AGG-AC |
AGG-DC |
Code |
AGG-AC |
AGG-DC |
||||||
|
Temp |
200℃ |
200℃ |
Temp |
200℃ |
200℃ |
||||||
|
Volt |
AWG |
OD (inches) |
Weight |
OD (inches) |
Weight |
Volt |
AWG |
OD (inches) |
Weight |
OD (inches) |
Weight |
|
5KV
|
24 |
|
|
0.1024 |
8.07 |
25KV
|
24 |
|
|
0.2205 |
31.24 |
|
22 |
|
|
0.1102 |
10.35 |
22 |
|
|
0.2283 |
34.66 |
||
|
20 |
|
|
0.1181 |
12.33 |
20 |
|
|
0.2362 |
37.77 |
||
|
18 |
|
|
0.1417 |
17.99 |
19 |
|
|
0.2598 |
46.82 |
||
|
17 |
|
|
0.1575 |
22.78 |
17 |
|
|
0.2677 |
51.27 |
||
|
16 |
|
|
0.1811 |
31.22 |
16 |
|
|
0.2953 |
64.28 |
||
|
13 |
|
|
0.2126 |
45.91 |
13 |
|
|
0.3150 |
78.73 |
||
|
10KV
|
24 |
|
|
0.1260 |
11.34 |
12 |
|
|
0.3543 |
106.66 |
|
|
22 |
0.3543 |
79.17 |
0.1339 |
13.86 |
10 |
|
|
0.3858 |
134.94 |
||
|
20 |
0.3543 |
80.16 |
0.1417 |
16.06 |
30KV
|
24 |
|
|
0.2598 |
42.73 |
|
|
19 |
0.3543 |
82.37 |
0.1654 |
22.40 |
22 |
|
|
0.2677 |
46.52 |
||
|
17 |
0.3543 |
84.01 |
0.1732 |
25.95 |
20 |
|
|
0.2756 |
50.01 |
||
|
16 |
0.3543 |
87.59 |
0.2047 |
36.76 |
19 |
|
|
0.3150 |
66.07 |
||
|
14 |
0.3937 |
110.48 |
|
|
17 |
|
|
0.3228 |
71.05 |
||
|
13 |
0.3937 |
112.64 |
0.2283 |
50.13 |
16 |
|
|
0.3543 |
87.59 |
||
|
12 |
0.3937 |
124.55 |
0.2677 |
73.91 |
13 |
|
|
0.3701 |
101.68 |
||
|
10 |
0.4134 |
148.33 |
0.2992 |
98.88 |
12 |
|
|
0.4134 |
134.21 |
||
|
15KV
|
24 |
|
|
0.1575 |
16.77 |
10 |
|
|
0.4409 |
162.64 |
|
|
22 |
|
|
0.1654 |
19.58 |
35KV
|
12 |
0.7087 |
335.56 |
|
|
|
|
20 |
|
|
0.1732 |
22.09 |
10 |
0.7087 |
349.68 |
|
|
||
|
19 |
|
|
0.2047 |
31.25 |
8 |
0.7480 |
419.12 |
|
|
||
|
17 |
|
|
0.2087 |
34.17 |
6 |
0.7874 |
494.63 |
|
|
||
|
16 |
|
|
0.2362 |
45.20 |
4 |
0.8268 |
598.71 |
|
|
||
|
13 |
|
|
0.2598 |
59.48 |
2 |
0.9055 |
759.85 |
|
|
||
|
12 |
|
|
0.2992 |
84.76 |
1 |
0.9843 |
961.46 |
|
|
||
|
10 |
|
|
0.3307 |
110.94 |
2/0 |
1.0630 |
1201.98 |
|
|
||
|
20KV
|
24 |
|
|
0.1654 |
18.32 |
3/0 |
1.1417 |
1502.93 |
|
|
|
|
22 |
|
|
0.1732 |
21.20 |
50KV
|
24 |
|
|
0.5748 |
202.50 |
|
|
20 |
|
|
0.1811 |
23.79 |
22 |
|
|
0.5827 |
209.30 |
||
|
19 |
|
|
0.2205 |
35.32 |
20 |
|
|
0.5906 |
215.80 |
||
|
17 |
|
|
0.2283 |
39.40 |
19 |
|
|
0.6142 |
235.03 |
||
|
16 |
|
|
0.2520 |
49.88 |
17 |
|
|
0.6220 |
242.87 |
||
|
13 |
|
|
0.2756 |
64.60 |
16 |
|
|
0.6535 |
270.87 |
||
|
12 |
|
|
0.3150 |
90.64 |
13 |
|
|
0.6772 |
297.13 |
||
|
10 |
|
|
0.3465 |
117.42 |
12 |
|
|
0.7480 |
370.42 |
||
|
|
|
|
|
|
|
10 |
|
|
0.7874 |
421.27 |
|
|
|
|
|
|
|
|
100KV |
17 |
|
|
0.9843 |
596.46 |
|
|
|
|
|
|
|
16 |
|
|
1.0945 |
739.31 |
|
