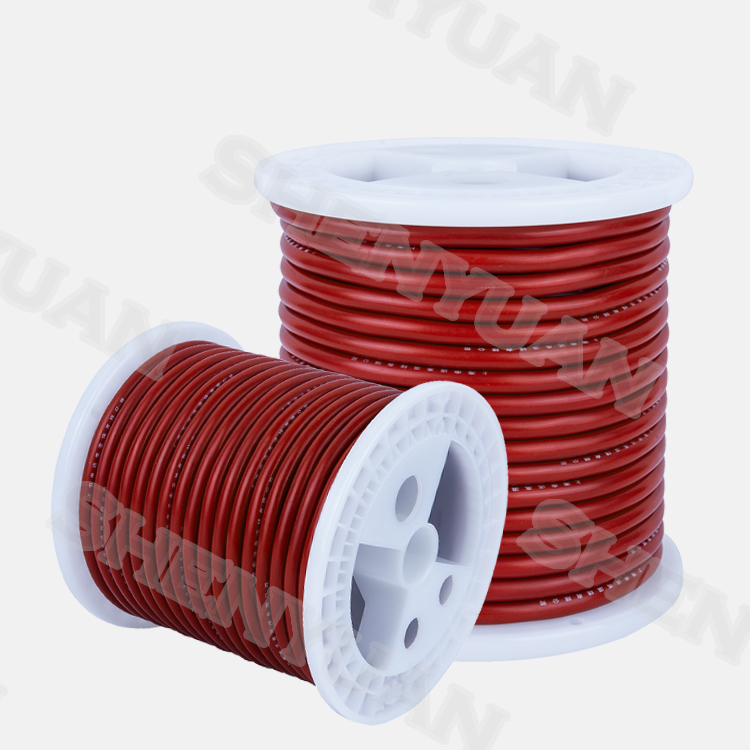

“AGR” Series (Silicone rubber wire )
Shanghai Shenyuan Hi-temp Wire Co.,Ltd is a well experienced Silicone rubber wire supplier. Since 1997 we've been producing a wide variety of Silicone rubber wires, Own model to UL approved silicone rubber wires as following:
Our model: “AGR” Series (Silicone rubber wire )
We also produce the Relevant UL Approved wires:
UL3132 UL3135 UL3140
UL3142 UL3529 UL3530
Our model “AGR” Series (Silicone rubber wire ) is a ideal choice for the customers who don’t need any UL certificate ,you can select “AGR”Series (Silicone rubber wire ) with the cross section : 0.1mm2 to 25 mm2 and three sorts of conductor materials : Nickel plated copper ,Silver plated copper,Tinned copper.
The Production standards comply with ISO 6722; QC/T 1037; LV 216 etc.
LV 216 specifies cable design, dimensions, etc
Customer requirements for the basic properties of silicone rubber: Tensile strength > 8 MPa Elongation > 300% Hardness 55-70 ShA
Class E(180 ° C hybrid) and Class F(200 ° C) require silicone rubber
Class E
Tear Strength ISO 34-1 B > 15 N/mm
Long-term aging of cable 180℃*3000 hours
Class F
Long-term aging of cable 200℃*3000 hours
Tear Strength ISO 34-1 B > 10 N/mm
Inspecting process
After twenty years development, the group holds three industrial parks in Shanghai, areas where the economy has been greatly developed, covering a total land area of 30 thousand square meters. Shenyuan has serviced to 15000 customers，focus on providing customers with comprehensive solutions.
