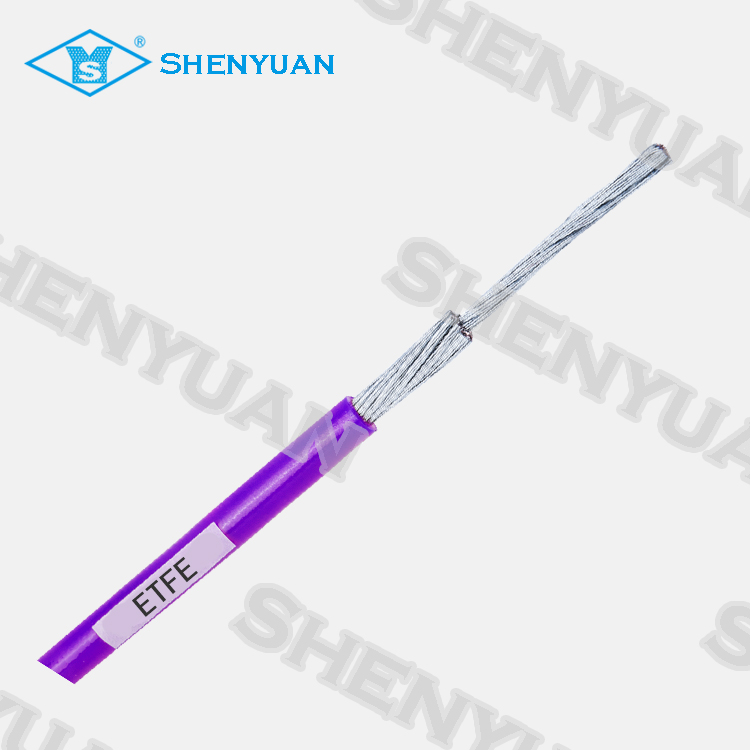

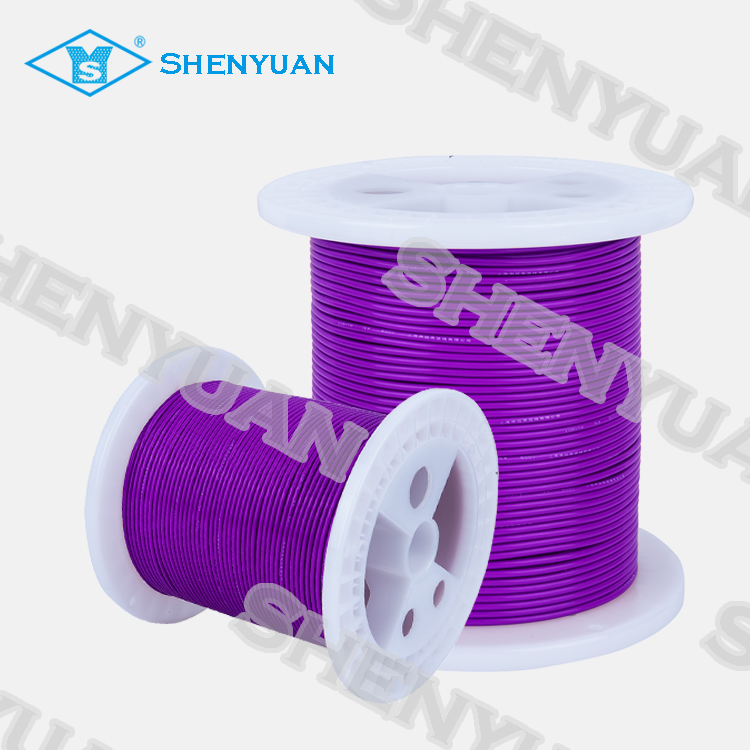

AF-150

Short Description:

▪36AWG~10AWG,stranded or solid conductor.
▪Silver plated copper.
▪Insulation:ETFE
▪Temperature range:-65~150℃
▪Rated voltage:300V/600V


Product Detail

FAQ

Product Tags

Options:

▪ -X: tinned copper conductor

▪ Colour:red / yellow / blue / white / black / yellow green / brown, etc.

▪ Code Printing: Printing on wires is allowed.

Characteristics:

▪ RoHS Compliant

▪ ETFE insulated and sheathed cables have excellent mechanical toughness and good resistance to high temperature and radiation

▪ Flame retardant grade: UL1581 (VW-1),IEC 60332-1-2

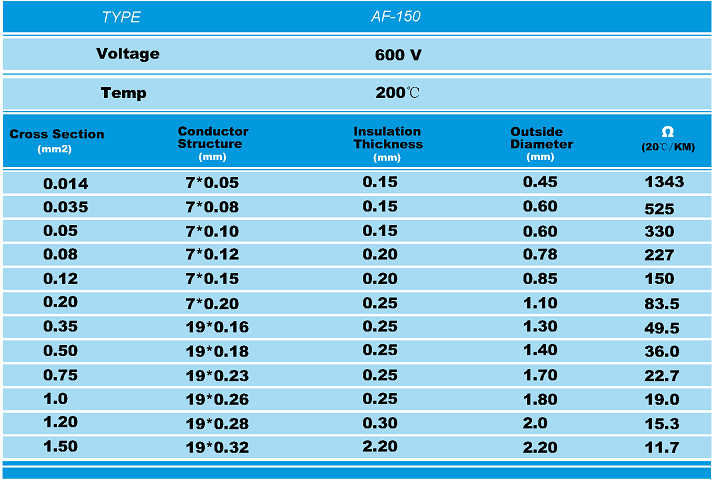

Technical Data of AF 150

AF 150

New factory and old factory : Two Manufacture Centers in Shanghai

老厂房

Old factory take land over 30000 m2

新厂房

New factory take land over 50000 m2 / Start operating in 2020

DSC_0018_副本

15000 m2 Conductor Warehouse

全景图2_副本

Manufacture Department

全景图1_副本

Manufacture Department
