GBB
“GBB” Series Braided Silicone Rubber Wire
Shanghai Shenyuan Hi-temp Wire Co.,Ltd is a well experienced Silicone rubber wire supplier. Since 1997 we've been producing a wide variety of Silicone rubber wires, Own model to UL approved silicone rubber wires as following:

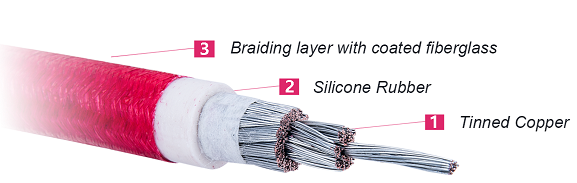

Our model: “GBB” Braided Silicone rubber wire
Our “GBB” series wires use the silicone rubber as the insulation material and add a outer sheath of braided Silicone+Fiberglass materials to protect the wire’s insulation and avoid the damages caused by a variety of radiation lights ,high temperature atmosphere and humidity ,along with various corrosive chemicals ,meanwhile it keeps the impact of external force (friction, mechanical strong impact)not directly eroding the insulation ,assuring that the wire and cable’s running in a normal way.
You can choose Its cross section: 0.20 mm2 to 300 mm2.
Two optional sorts of conductor materials : Bare copper and Tinned copper.
Outer diameter is : 0.60 mm to 26.0 mm.
We also produce the Relevant UL Approved wires:
UL3068 UL3069 UL3605 UL3071
UL3074 UL3075 UL3122 UL3513
Our Silicone rubber wires can meet you 99% requirements!
The Production standards comply with ISO 6722; QC/T 1037; LV 216 etc.
LV 216 specifies cable design, dimensions, etc
Customer requirements for the basic properties of silicone rubber: Tensile strength > 8 MPa Elongation > 300% Hardness 55-70 ShA
Class E(180 ° C hybrid) and Class F(200 ° C) require silicone rubber
Class E
Tear Strength ISO 34-1 B > 15 N/mm
Long-term aging of cable 180℃*3000 hours
Class F
Long-term aging of cable 200℃*3000 hours
Tear Strength ISO 34-1 B > 10 N/mm
Inspecting process
After twenty years development, the group holds three industrial parks in Shanghai, areas where the economy has been greatly developed, covering a total land area of 30 thousand square meters. Shenyuan has serviced to 15000 customers，focus on providing customers with comprehensive solutions.
