GN350
Options：

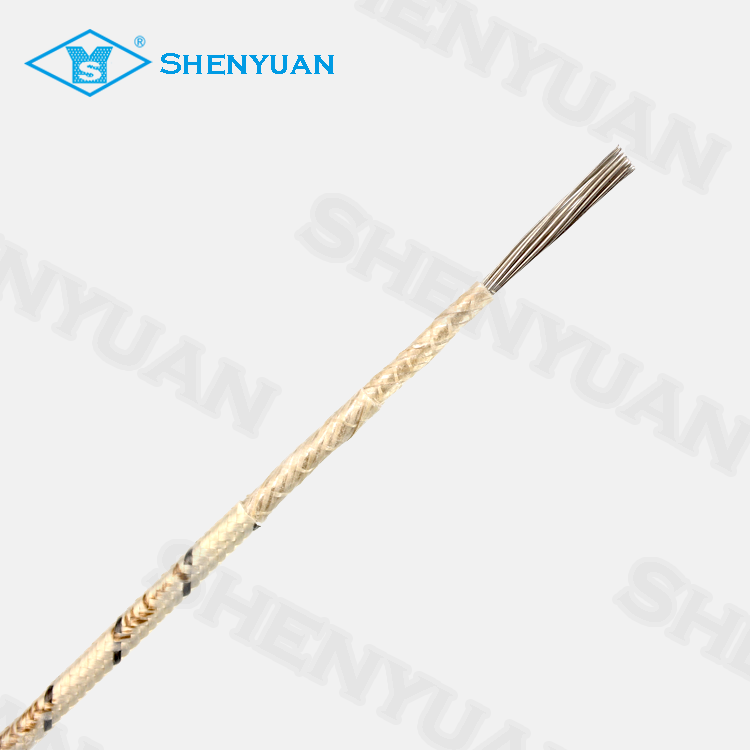

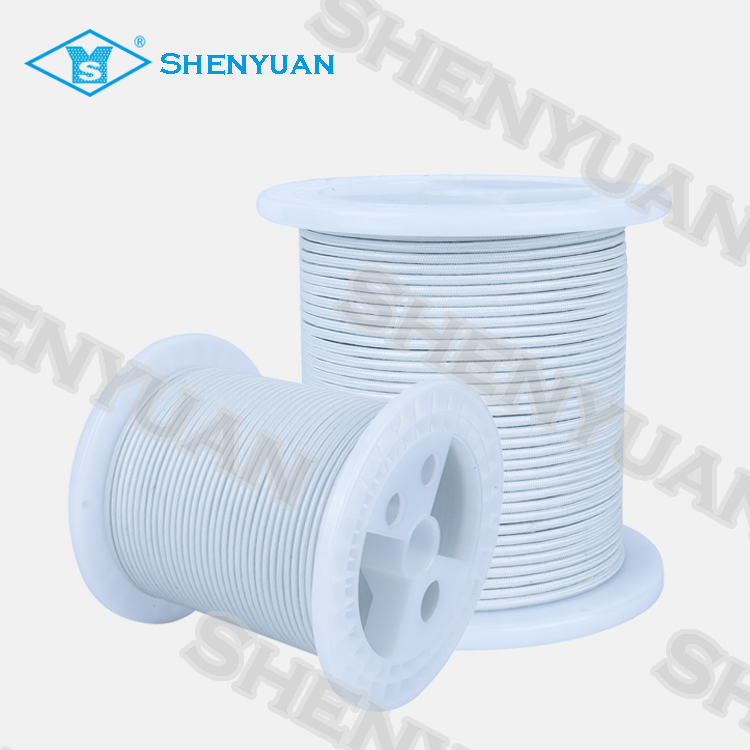

▪ Braiding Colour：white or color stripes
(red / yellow / blue/ green / black / yellow green , etc.)
▪ Shield (optional): nickel-plated copper wire or stainless steel braid
Characteristics:
▪ UL 758 Appliance Wiring Material
▪ Fiberglass braiding layer providing with extral abrasive-resistance
▪ Mica tape providing the insulation layer with excellent fire retardant performance
Application：
It is used in high-temperature operation fields such as electric heating, petrochemicals, mechanical and electrical equipment,motors,lighting fixtures, power plants, clothes dryers, stoves, drying rooms, heating light sources, and electric appliances. The defects are lowpressure resistance and general fire resistance.
|
Code |
GN350 |
||
|
Voltage |
500V |
||
|
Temp |
350℃ |
||
|
Cross sections semm2 |
Ω |
OD(mm) |
Weight (KG/KM) |
|
0.5 |
39 |
2.3 |
12.42 |
|
0.75 |
26 |
2.5 |
17.43 |
|
1.0 |
19.5 |
2.6 |
20.19 |
|
1.5 |
13.3 |
2.9 |
25.11 |
|
2.0 |
10.0 |
3.3 |
34.06 |
|
2.5 |
7.98 |
3.6 |
37.78 |
|
4 |
4.95 |
4.7 |
48.82 |
|
6 |
3.30 |
5.5 |
77.92 |
|
10 |
1.91 |
6.6 |
103.11 |
|
16 |
1.21 |
7.8 |
163.83 |
|
25 |
0.78 |
9.5 |
249.06 |
|
35 |
0.554 |
11.2 |
387.95 |
|
50 |
0.386 |
13.2 |
470.19 |
|
70 |
0.272 |
15.4 |
710.86 |
|
95 |
0.206 |
17.4 |
901.91 |
