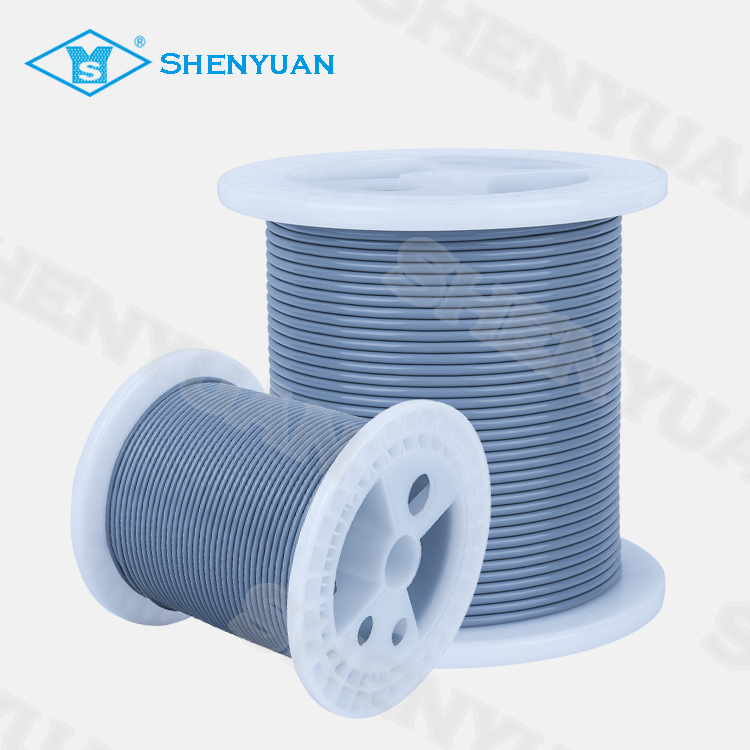

JYJ
Options：

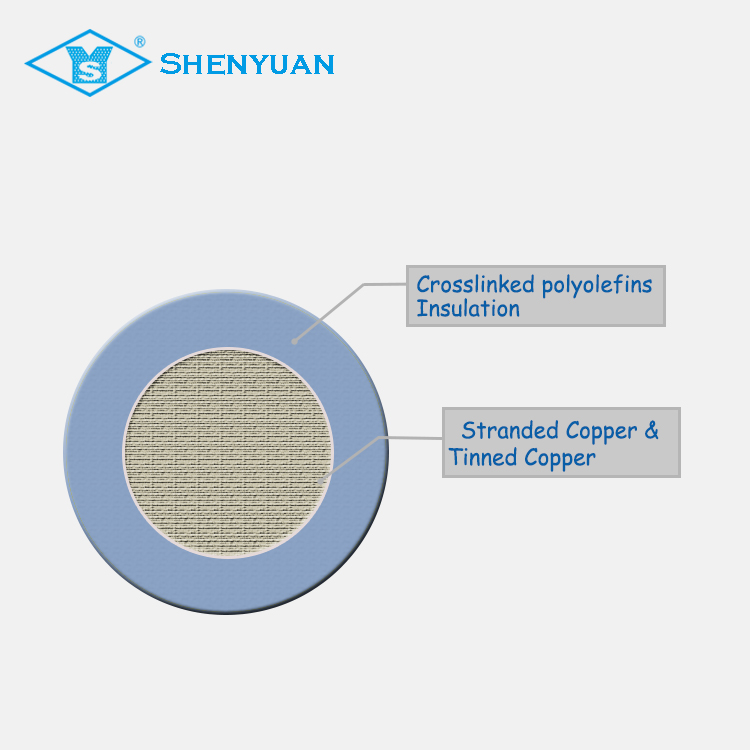

▪ We can offer the copper or the tinned copper
▪ Braiding Colour：red / yellow / blue / white / black / yellow green / brown, etc.
(Surface marking)
Characteristics:
▪ RoHS Compliant
▪ Flame retardant grade: UL1581 (VW-1)
▪ It has excellent high temperature resistance, low temperature resistance, low smoke halogen-free flame retardant, does not produce a large amount of dense smoke and toxic gases during combustion, and it is difficult to burn with a high oxygen index.
▪ It has excellent electrical insulation properties and excellent chemical stability.
▪ High voltage resistance, aging resistance, long service life, and soft, easy to install
Application：
The product is suitable for F-class, F-class, and H-class insulated motors and electrical leads with AC rated voltages of 690V, 1140V and below, and is widely used in high-power motors, rare earth permanent magnet motors, and servo motors.
Technical Data of JYJ
|
Code |
JYJ |
|||
|
Temp |
150℃ |
|||
|
Voltage |
500V |
1000V |
3000V |
|
|
AWG |
Ω |
OD(inches) |
OD(inches) |
OD(inches) |
|
20 |
40.1 |
0.1024 |
0.1496 |
|
|
19 |
26.7 |
0.1102 |
0.1575 |
|
|
17 |
20.0 |
0.1181 |
0.1654 |
|
|
16 |
13.7 |
0.1299 |
0.1772 |
|
|
13 |
8.21 |
0.1496 |
0.1969 |
0.3071 |
|
12 |
5.09 |
0.1772 |
0.2205 |
0.3346 |
|
10 |
3.39 |
0.2047 |
0.2598 |
0.3622 |
|
9 |
2.55 |
0.2441 |
0.2835 |
0.3858 |
|
8 |
1.95 |
0.2756 |
0.2992 |
0.4016 |
|
6 |
1.24 |
0.3228 |
0.3858 |
0.4528 |
|
4 |
0.795 |
0.3780 |
0.4094 |
0.5039 |
|
2 |
0.565 |
0.4173 |
0.4528 |
0.5433 |
|
1 |
0.393 |
0.5118 |
0.5315 |
0.6142 |
|
2/0 |
0.277 |
0.6063 |
0.6220 |
0.6929 |
|
3/0 |
0.210 |
0.6850 |
0.7087 |
0.7874 |
