UL1180
Options：
▪ -N: nickel plated copper conductor
▪ -Ni: pure nickel conductor
▪ Colour：red / yellow / blue / white / black / yellow green / brown, etc.(Spiraled Two-color insulation)
▪ Code Printing: Printing on wires is allowed.
Characteristics:
▪ RoHS Compliant
▪ UL 758 Appliance Wiring Material
▪ Maximum length : 1 kilometers
▪ Perfect mechanical and chemical properties
▪ Flame retardant grade: UL1581 (VW-1),IEC 60332-1-2
▪ Better resistance to oil,strong acids, and strong alkalis and strong oxidants, etc.
Application：
It can be used in following applications:
Automotive sensors, motors, air conditioners, microwave ovens, electronic disinfection cabinets, electricity Internal wiring for heaters, electric ovens, lighting fixtures, etc.
Technical Data of UL 1180
|
UL code |
1213 |
1180 |
1815 |
||||
|
Voltage |
No requedt |
300V |
300V |
||||
|
Temp |
105℃ |
200℃ |
250℃ |
||||
|
AWG |
Ω |
OD |
Weight |
OD |
Weight |
OD |
Weight |
|
10 |
3.55 |
0.1350 |
54.67 |
0.1445 |
57.74 |
0.1445 |
57.74 |
|
12 |
5.64 |
0.1130 |
37.23 |
0.1224 |
39.82 |
0.1224 |
39.82 |
|
14 |
8.96 |
0.0894 |
22.05 |
0.0988 |
24.12 |
0.0988 |
24.12 |
|
16 |
14.60 |
0.0756 |
15.04 |
0.0850 |
16.80 |
0.0850 |
16.80 |
|
17 |
18.30 |
0.0677 |
11.64 |
0.0772 |
13.23 |
0.0772 |
13.23 |
|
18 |
23.20 |
0.0618 |
9.38 |
0.0713 |
10.84 |
0.0713 |
10.84 |
|
20 |
36.70 |
0.0539 |
6.41 |
0.0614 |
7.41 |
0.0614 |
7.41 |
|
22 |
59.40 |
0.0480 |
5.07 |
0.0575 |
6.23 |
0.0575 |
6.23 |
|
24 |
94.20 |
0.0402 |
3.27 |
0.0496 |
4.25 |
0.0496 |
4.25 |
|
26 |
150.00 |
0.0354 |
2.35 |
0.0449 |
3.23 |
0.0449 |
3.23 |
|
28 |
239.00 |
0.0307 |
1.60 |
0.0402 |
2.38 |
0.0402 |
2.38 |
|
30 |
381.00 |
0.0283 |
1.28 |
0.0378 |
2.01 |
0.0378 |
2.01 |
|
32 |
664.80 |
0.0260 |
1.01 |
0.0354 |
1.68 |
0.0354 |
1.68 |
|
34 |
948.38 |
0.0236 |
0.77 |
|
|
|
|
|
36 |
1500.98 |
0.0224 |
0.67 |
|
|
|
|
UL Certificate
Shanghai Shenyuan Hi-temp Wire Co.,Ltd is a well experienced PTFE insulated wire supplier. Since 1998 we've been producing a wide variety of PTFE wires, Own model AFT 250 to the UL approved PTFE wires as following:
UL1164 UL1180 UL1198 UL1199
UL1212 UL1213 UL1570 UL1584
UL1815 UL10393 UL1659
Our PTFE wires can meet you 99% requirements!

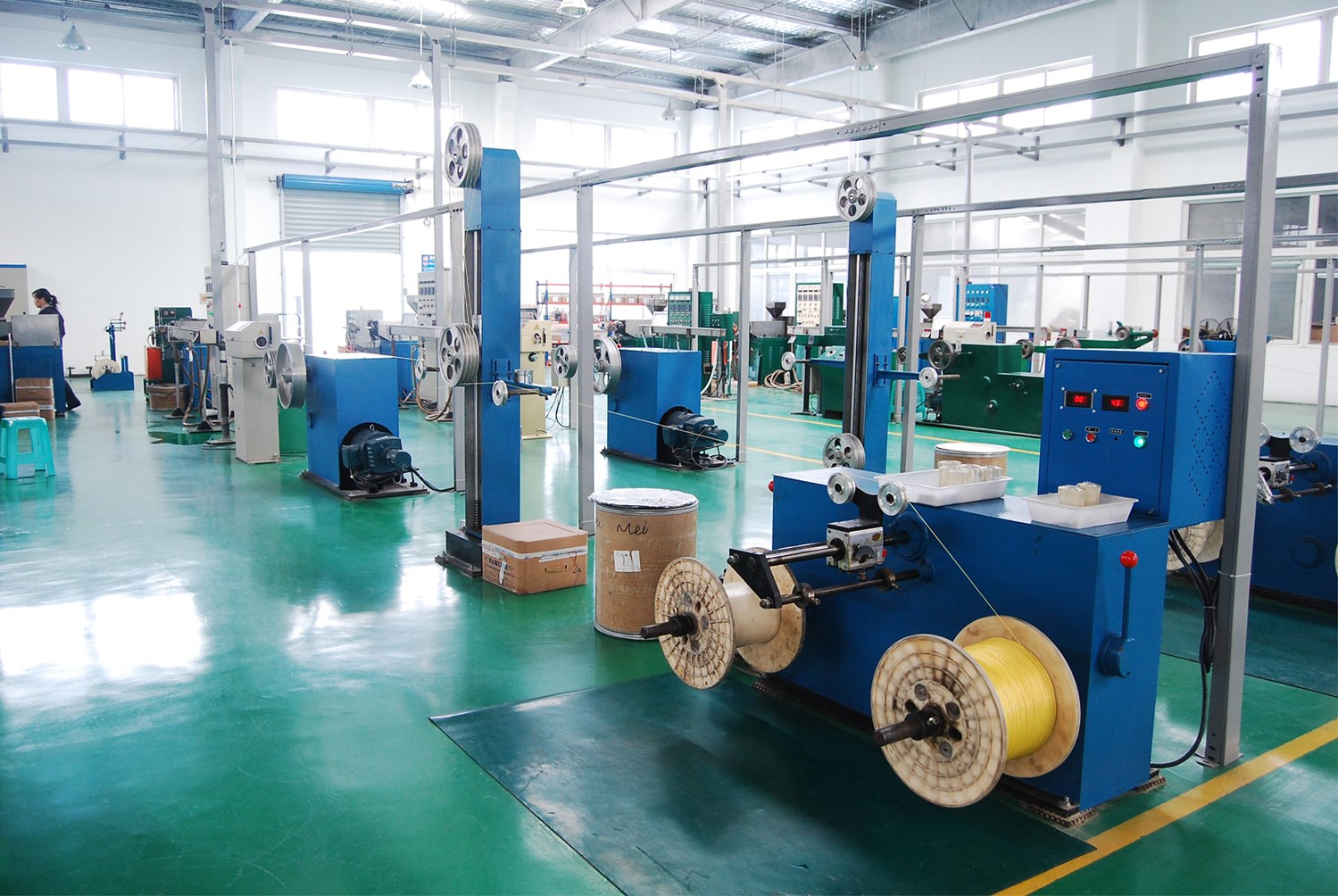

New factory and old factory : Two Manufacturing Centers In Shanghai
