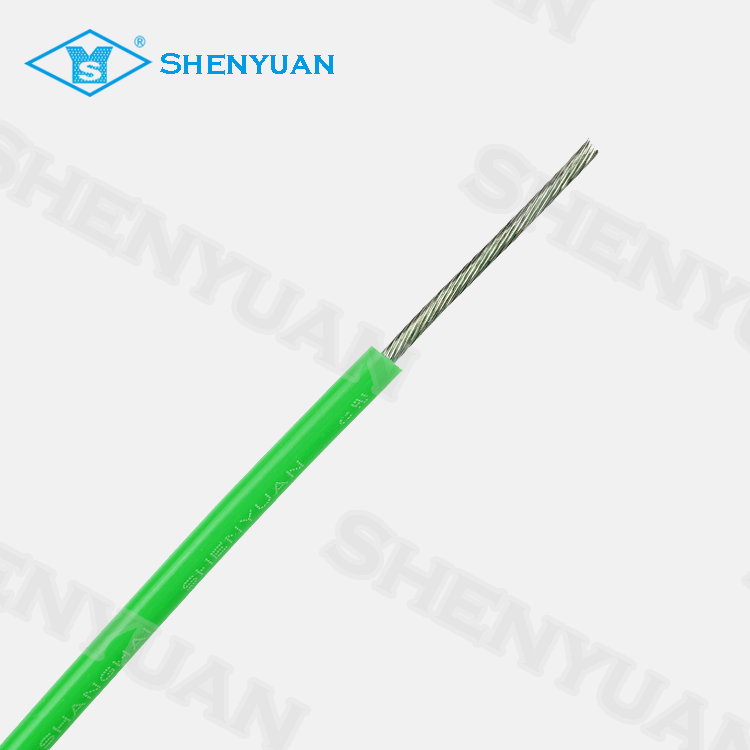

UL1199
Options：
▪ -N: nicked copper conductor
▪ -Ni: pure nickel conductor
▪ Colour：red / yellow / blue / white / black / yellow green / brown, etc.
(Spiraled Two-color insulation/ Surface marking)
Characteristics:
▪ RoHS Compliant
▪ UL 758 Appliance Wiring Material
▪ Maximum length of a piece of wire: 1 kilometers
▪ Perfect mechanical and chemical properties
▪ Flame retardant grade: UL1581 (VW-1),IEC 60332-1-2
▪ Better resistance to oil,strong acids, and strong alkalis and strong oxidants, etc.
Application：
The products are widely used in electrical wiring harnesses, sensing wires, PTC thermistors, coating equipment, automotive internal connection wires, motors, lighting fixtures, electronic appliances, voltage cabinets, high-voltage motors, and internal connections in electronic computers Wire, aerospace wires and special purpose installation wires, oil pump cables, and insulation of submersible motor winding wires.
|
UL code |
10393 |
1199 |
1584 |
||||
|
Voltage |
250V |
200V |
1000V |
||||
|
Temp |
250℃ |
200℃ |
200℃ |
||||
|
AWG |
Ω |
OD |
Weight |
OD |
Weight |
OD |
Weight |
|
10 |
3.55 |
0.1445 |
57.74 |
0.1587 |
62.75 |
0.1626 |
64.22 |
|
12 |
5.64 |
0.1224 |
39.82 |
0.1366 |
44.10 |
0.1406 |
45.37 |
|
14 |
8.96 |
0.0988 |
24.12 |
0.1130 |
27.62 |
0.1169 |
28.67 |
|
16 |
14.60 |
0.0850 |
16.80 |
0.0992 |
19.85 |
0.1031 |
20.77 |
|
17 |
18.30 |
0.0772 |
13.23 |
0.0913 |
16.01 |
0.0953 |
16.87 |
|
18 |
23.20 |
0.0713 |
10.84 |
0.0854 |
13.43 |
0.0894 |
14.23 |
|
20 |
36.70 |
0.0614 |
7.41 |
0.0756 |
9.67 |
0.0795 |
10.38 |
|
22 |
59.40 |
0.0575 |
6.23 |
0.0717 |
8.36 |
0.0756 |
9.04 |
|
24 |
94.20 |
0.0496 |
4.25 |
0.0638 |
6.13 |
0.0677 |
6.73 |
|
26 |
150.00 |
0.0449 |
3.23 |
0.0591 |
4.95 |
0.0630 |
5.51 |
|
28 |
239.00 |
0.0402 |
2.38 |
0.0543 |
3.94 |
0.0583 |
4.45 |
|
30 |
381.00 |
0.0378 |
2.01 |
0.0520 |
3.49 |
0.0559 |
3.99 |
|
32 |
664.80 |
0.0354 |
1.68 |
|
|
|
|
After twenty years development, the group holds three industrial parks in Shanghai, areas where the economy has been greatly developed, covering a total land area of 30 thousand square meters. Shenyuan has serviced to 15000 customers，focus on providing customers with comprehensive solutions.
UL Certificate
Shanghai Shenyuan Hi-temp Wire Co.,Ltd is a well experienced PTFE insulated wire supplier. Since 1997 we've been producing a wide variety of PTFE wires, Own model AFT 250 to the UL approved PTFE wires as following:
UL1164 UL1180 UL1198 UL1199
UL1212 UL1213 UL1570 UL1584
UL1815 UL10393 UL1659
Our PTFE wires can meet you 99% requirements!
