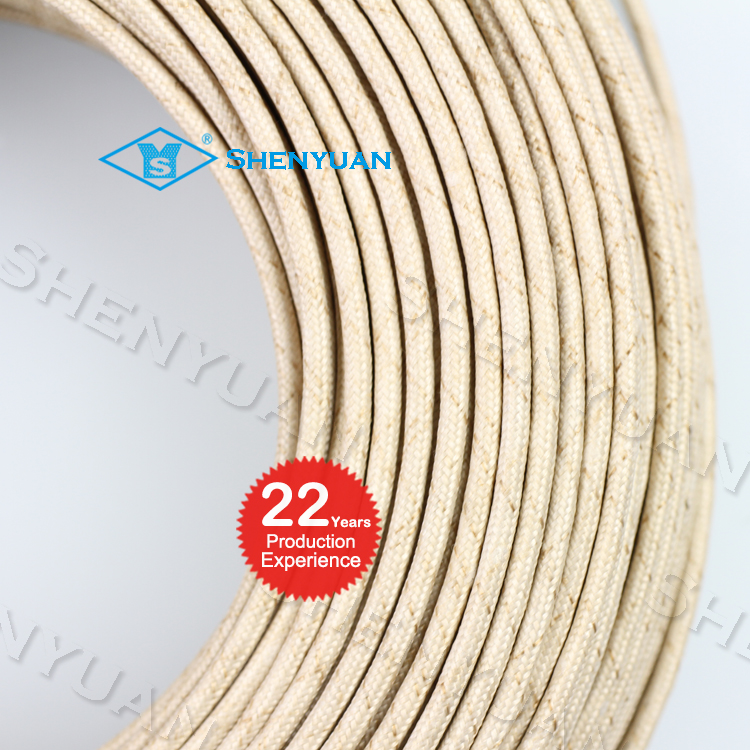

UL5107
Options：
▪ -Ni: pure nickel conductor
▪ Shield (optional): nickel-plated copper wire or stainless steel braid
▪ Braiding Colour：natural or color stripes (red / yellow / blue/ green / black / yellow green , etc.)
Characteristics:
▪ UL 758 Appliance Wiring Material
▪ Nickel-plated or pure nickel stranded wire, has good high temperature oxidation resistance.
▪ mica tape has excellent high temperature resistance and combustion resistance, good insulation performanceby various light radiation, high temperature, humidity, and various chemicals, so that the insulating layer has accelerated aging and shortens the life of the product;.
Application：
It is used in high-temperature operation fields such as electric heating, petrochemicals, mechanical and electrical equipment, power plants, drying tunnels, drying rooms, heating light sources, and electric appliances. The defects are low pressure resistance and general fire resistance.
Technical Date of UL 5107
|
UL code |
5128 |
5335 |
5107 |
||||
|
Voltage |
300V |
600V |
600V |
||||
|
Temp |
450℃ |
450℃ |
450℃ |
||||
|
AWG |
Ω |
OD(inches) |
Weight |
OD(inches) |
Weight |
OD(inches) |
Weight |
|
4/0 |
0.17 |
|
|
0.6968 |
1091.68 |
0.7126 |
1110.36 |
|
3/0 |
0.22 |
|
|
0.6417 |
901.91 |
0.6575 |
919.07 |
|
2/0 |
0.28 |
|
|
0.5748 |
710.86 |
0.5906 |
726.26 |
|
1/0 |
0.35 |
|
|
0.5118 |
539.22 |
0.5276 |
552.87 |
|
1 |
0.44 |
|
|
0.4803 |
470.19 |
0.4961 |
482.96 |
|
2 |
0.56 |
|
|
0.4409 |
387.95 |
0.4567 |
399.62 |
|
3 |
0.70 |
|
|
0.4016 |
305.08 |
0.4173 |
315.44 |
|
4 |
0.88 |
0.3465 |
236.43 |
0.3504 |
249.06 |
0.3661 |
256.40 |
|
5 |
1.11 |
0.3071 |
181.29 |
0.3110 |
192.45 |
0.3268 |
198.97 |
|
6 |
1.41 |
0.2874 |
158.10 |
0.2913 |
163.83 |
0.3071 |
169.84 |
|
7 |
1.76 |
0.2480 |
117.72 |
0.2520 |
124.76 |
0.2677 |
129.95 |
|
8 |
2.23 |
0.2362 |
95.13 |
0.2402 |
103.11 |
0.2559 |
109.63 |
|
10 |
3.55 |
0.2047 |
68.28 |
0.2087 |
77.92 |
0.2244 |
81.10 |
|
11 |
4.48 |
0.1811 |
51.53 |
0.1850 |
54.25 |
0.2008 |
64.51 |
|
12 |
5.75 |
0.1496 |
45.14 |
0.1614 |
49.82 |
0.1693 |
54.15 |
|
13 |
7.26 |
0.1260 |
33.06 |
0.1378 |
37.78 |
0.1457 |
41.45 |
|
14 |
9.15 |
0.1181 |
29.69 |
0.1299 |
34.06 |
0.1378 |
35.69 |
|
15 |
11.50 |
0.1063 |
24.00 |
0.1181 |
26.53 |
0.1260 |
29.76 |
|
16 |
14.60 |
0.1024 |
19.77 |
0.1142 |
25.11 |
0.1220 |
26.78 |
|
17 |
18.50 |
0.0945 |
18.02 |
0.1063 |
20.19 |
0.1142 |
22.99 |
|
18 |
23.50 |
0.0906 |
17.06 |
0.1024 |
17.43 |
0.1102 |
20.01 |
|
20 |
37.40 |
0.0827 |
11.07 |
0.0906 |
12.42 |
0.1063 |
16.38 |
|
22 |
59.40 |
0.0787 |
8.32 |
0.0866 |
12.19 |
0.0945 |
14.49 |
After twenty years development, the group holds three industrial parks in Shanghai, areas where the economy has been greatly developed, covering a total land area of 30 thousand square meters. Shenyuan has serviced to 15000 customers，focus on providing customers with comprehensive solutions.
UL Certificate
Shanghai Shenyuan Hi-temp Wire Co.,Ltd is a well experienced Fiberglass lead wire supplier. Since 1997 we've been producing a wide variety of fire resistant wires,our model : GN350 GN450 GN500 GN800 GN1000 GN1200 Series to the UL approved wires as following:
UL5107 UL5128 UL5335
New factory and old factory: Two Manufacture Centers in Shanghai
