UL5335
Options：
▪ -Ni: pure nickel conductor

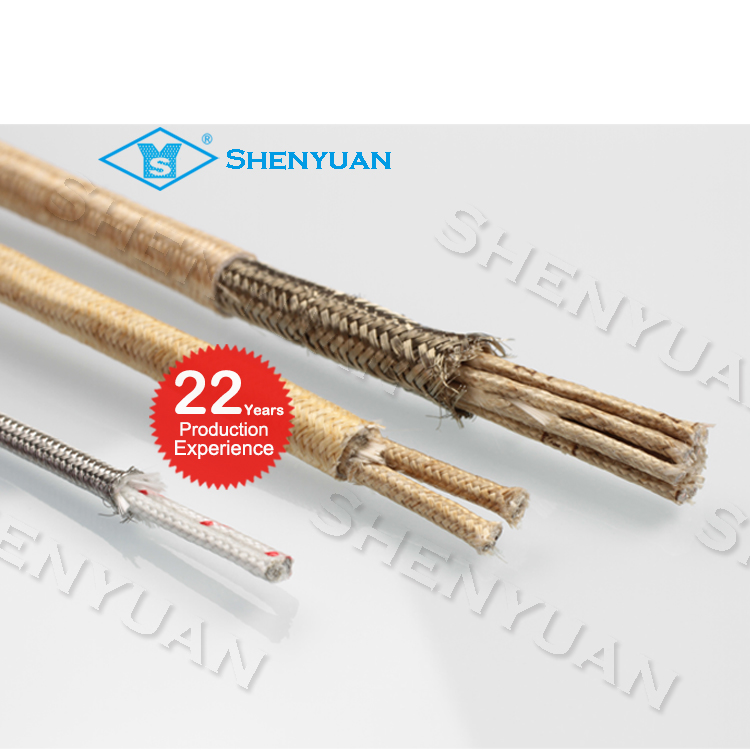

▪ Shield (optional): nickel-plated copper wire or stainless steel braid
▪ Braiding Colour：natural or color stripes (red / yellow / blue/ green / black / yellow green , etc.)
Characteristics:
▪ UL 758 Appliance Wiring Material

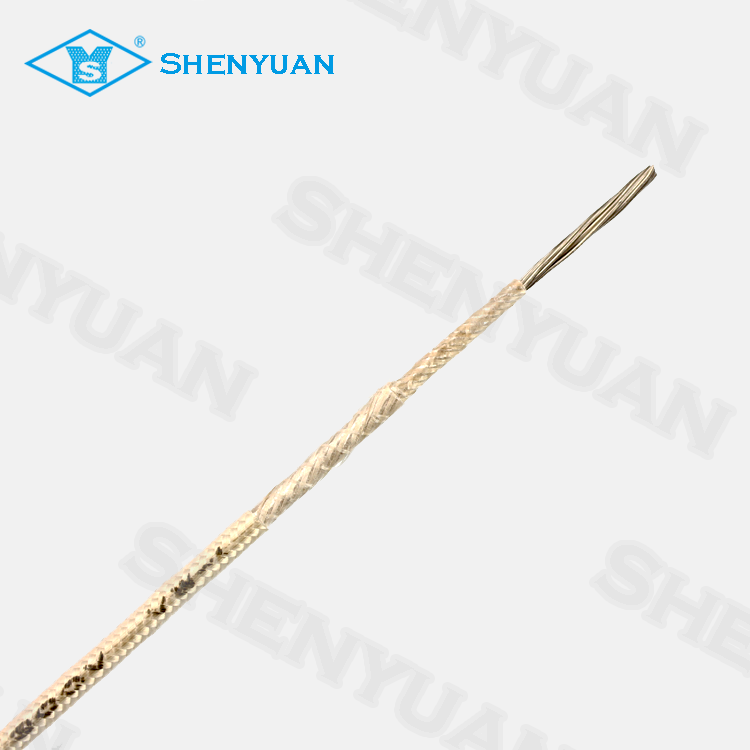

▪ Nickel-plated or pure nickel stranded wire, has good high temperature oxidation resistance.

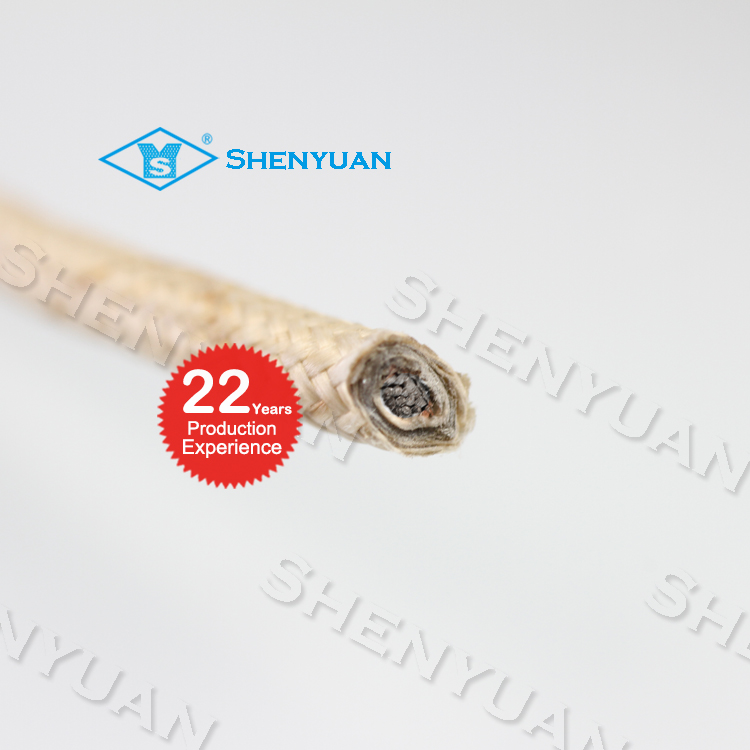

▪ mica tape has excellent high temperature resistance and combustion resistance, good insulation performanceby various light radiation, high temperature, humidity, and various chemicals, so that the insulating layer has accelerated aging and shortens the life of the product;.
Application：
It is used in high-temperature operation fields such as electric heating, petrochemicals, mechanical and electrical equipment, power plants, drying tunnels, drying rooms, heating light sources, and electric appliances. The defects are low pressure resistance and general fire resistance.
Technical Date of UL 5335
|
UL code |
5128 |
5335 |
5107 |
||||
|
Voltage |
300V |
600V |
600V |
||||
|
Temp |
450℃ |
450℃ |
450℃ |
||||
|
AWG |
Ω |
OD(inches) |
Weight |
OD(inches) |
Weight |
OD(inches) |
Weight |
|
4/0 |
0.17 |
|
|
0.6968 |
1091.68 |
0.7126 |
1110.36 |
|
3/0 |
0.22 |
|
|
0.6417 |
901.91 |
0.6575 |
919.07 |
|
2/0 |
0.28 |
|
|
0.5748 |
710.86 |
0.5906 |
726.26 |
|
1/0 |
0.35 |
|
|
0.5118 |
539.22 |
0.5276 |
552.87 |
|
1 |
0.44 |
|
|
0.4803 |
470.19 |
0.4961 |
482.96 |
|
2 |
0.56 |
|
|
0.4409 |
387.95 |
0.4567 |
399.62 |
|
3 |
0.70 |
|
|
0.4016 |
305.08 |
0.4173 |
315.44 |
|
4 |
0.88 |
0.3465 |
236.43 |
0.3504 |
249.06 |
0.3661 |
256.40 |
|
5 |
1.11 |
0.3071 |
181.29 |
0.3110 |
192.45 |
0.3268 |
198.97 |
|
6 |
1.41 |
0.2874 |
158.10 |
0.2913 |
163.83 |
0.3071 |
169.84 |
|
7 |
1.76 |
0.2480 |
117.72 |
0.2520 |
124.76 |
0.2677 |
129.95 |
|
8 |
2.23 |
0.2362 |
95.13 |
0.2402 |
103.11 |
0.2559 |
109.63 |
|
10 |
3.55 |
0.2047 |
68.28 |
0.2087 |
77.92 |
0.2244 |
81.10 |
|
11 |
4.48 |
0.1811 |
51.53 |
0.1850 |
54.25 |
0.2008 |
64.51 |
|
12 |
5.75 |
0.1496 |
45.14 |
0.1614 |
49.82 |
0.1693 |
54.15 |
|
13 |
7.26 |
0.1260 |
33.06 |
0.1378 |
37.78 |
0.1457 |
41.45 |
|
14 |
9.15 |
0.1181 |
29.69 |
0.1299 |
34.06 |
0.1378 |
35.69 |
|
15 |
11.50 |
0.1063 |
24.00 |
0.1181 |
26.53 |
0.1260 |
29.76 |
|
16 |
14.60 |
0.1024 |
19.77 |
0.1142 |
25.11 |
0.1220 |
26.78 |
|
17 |
18.50 |
0.0945 |
18.02 |
0.1063 |
20.19 |
0.1142 |
22.99 |
|
18 |
23.50 |
0.0906 |
17.06 |
0.1024 |
17.43 |
0.1102 |
20.01 |
|
20 |
37.40 |
0.0827 |
11.07 |
0.0906 |
12.42 |
0.1063 |
16.38 |
|
22 |
59.40 |
0.0787 |
8.32 |
0.0866 |
12.19 |
0.0945 |
14.49 |
